3M 1170 WIDTH 12 MM IN ROLL OF 16,5 M

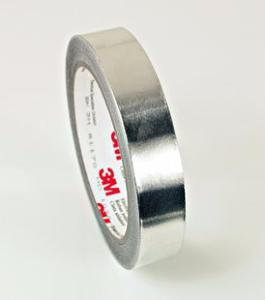

3M 1170 ALUMINIUM FOIL TAPE - 12 MM x 16,5 M

3M Aluminum Foil Tape 1170 consists of a 1-ounce rolled aluminum foil backing and an electrically conductive, pressure-sensitive acrylic adhesive.

This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solder ability.

- Backing : Aluminium

- Adhesive : Acrylic

- Backing thickness : 0,05 mm

- Total thickness : 0,08 mm

- Adhesion to steel : 3,8 N/10mm

- Breaking strength : 35 N/10mm

- Thermal class : +155 °C

- UL510 recognition

3M Aluminum Foil Tape 1170 is typically used as an EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials.
