3M 1350F-Y1 WIDTH 50 MM IN ROLL OF 66 M

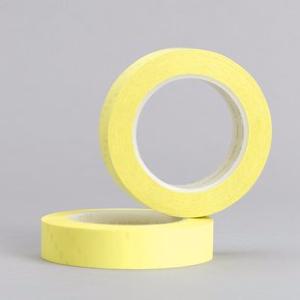

3M 1350F-Y1 YELLOW POLYESTER TAPE - 50 MM x 66 M

3M 1350 Tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510.

It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating.

It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.

- Backing : Polyester

- Color : Yellow

- Adhesive : Acrylic

- Backing thickness : 0,025 mm

- Total thickness : 0,06 mm

- Adhesion to steel : 3,3 N/10mm

- Elongation at break : 75 %

- Range of use : -50 °C / +130 °C

- Dielectric Breakdown : 5000 V

- UL510 recognition

3M 1350 Tape is especially suited for applications such as wrapping coils, capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors.
