3M 69 WIDTH 50 MM IN ROLL OF 33 M

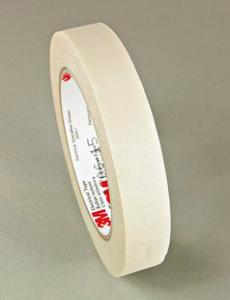

3M 69 GLASS CLOTH ELECTRICAL TAPE - 50 MM x 33 M

3M Glass Cloth Electrical Tape 69 is a white glass cloth tape with a hightemperature thermosetting silicone pressure-sensitive adhesive.

It is designed for use in 600-volt dry location applications motors, and transformers with and without varnish coating.

Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance.

- Backing : Glass cloth

- Color : White

- Adhesive : Silicone

- Total thickness : 0,18 mm

- Adhesion to steel : 4,4 N/10mm

- Elongation at break : 5 %

- Range of use : -50 °C / +180 °C

- Dielectric Breakdown : 3000 V

- UL510 recognition

- Insulating electric and induction-type furnace power supply leads

- Securing high-temperature, non-PSA insulation (such as asbestos and glass) in high-temperature areas

- Securing Scotch Fire Retardant Electric Arc Proofing Tape 77

- Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)

- Reinsulating and repairing coils on mining machines

- Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes Insulating Class "H” dry-type transformer leads

- Insulating splices made on SA type wire in heat treat areas

- Especially suited to high-temperature applications

- Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection.
