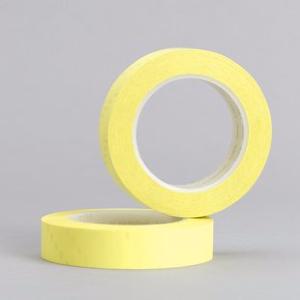

3M 74 WIDTH 12 MM IN ROLL OF 66 M

3M 74 YELLOW POLYESTER TAPE - 12 MM x 66 M

3M 74 Tape is a 0.5-mil polyester film with rubber thermosetting adhesive.

- 0.5-mil polyester film backing

- Rubber thermosetting adhesive

- Supplied on 3 inch cores

- Backing : Polyester

- Color : Yellow

- Adhesive : Rubber

- Backing thickness : 0,0125 mm

- Total thickness : 0,020 mm

- Adhesion to steel : 2,2 N/10mm

- Elongation at break : 80 %

- Range of use : -50 °C / +130 °C

- Dielectric Breakdown : 3500 V

- UL510 recognition

3M 74 Tape is conformable; provides good electrical strength for coil applications where space is at a premium.
