3M RESIN KIT 92 NBC 2C - T-BRANCH KIT
3M Scotchcast resin T-Branch kit 92-NBC 2 is designed to be used for 1-core up to 5- core non shielded, polymeric, low voltage energy cables.
The application incorporates electrical insulation and mechanical protection of joints with compression or mechanical connectors.
It can be used for indoor and outdoor, underground and submerged applications.
Features :
- Section : 4 x 4 – 4 x 16 MM² and 5 x 2,5 - 5 x 16 MM²
- Diameter : 16 - 33 MM
- Resin 40 in transparent two chamber bags with integrated Closed Mixing and Pouring (CMP) system.
- Two part (upper and lower) mould shelves with Snap Fit closing system for quick and easy handling.
- Transparent Mould Body for easy control of connector distances in the joint.
- Pre cut foam sealing elements to provide reliable sealing to the Mould Body without tooling for all cable application diameters.
- Closure cap to prevent any pollution.

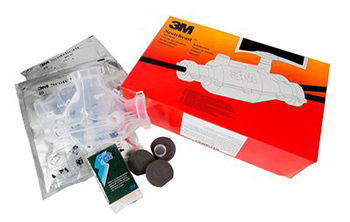

Kit content :
- Two part (upper and lower) transparent mould shelves with closure cap
- Scotchcast 40 resin bag with CMP
- Pre-cut sealing elements
- Abrasive sponge
- Detailed instruction
