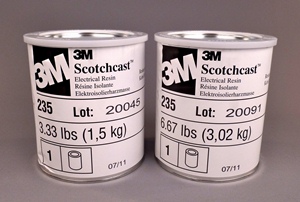

3M SCOTCHCAST 235 IN 4 KG KIT

3M SCOTCHCAST ELECTRICAL RESIN 235 - KIT 4,54 KG

3M Scotchcast Electrical Resin 235 system has permanent semiflexibility, thermal shock and impact resistance, good electrical and adhesion properties.

This low-viscosity resin is well suited to a variety of general purpose, Class B (130ºC) applications.

Its low viscosity and good wetting characteristics allow complete impregnation of even small coils, and it has the mechanical strength and flexibility needed for high-quality insulation of large castings, such as motors, transformers and coils.

- Low viscosity

- Class B (130ºC)

- Good flexibility

- Color : Brown

- Hardness : 55 Shore D

- Elongation at break : 75 %

- Tensile strength : 91 kg / cm²
