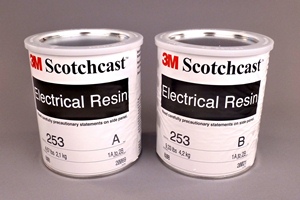

3M SCOTCHCAST 253 IN 6,34 KG KIT

3M SCOTCHCAST ELECTRICAL RESIN 253 - KIT 6,34 KG

3M Scotchcast Electrical Resin 253 is a 100% solids, two-part, oven-curing, semiflexible, filled, brown, epoxy resin capable of operating continuously at 130°C.

The thixotropic nature of this product renders it readily applicable by dipping, extrusion or trowelling in applications where resistance to running or sagging is a requirement.

The properly cured product exhibits permanent flexibility, good adhesion, good thermal and mechanical shock resistance and good thermal conductivity.

Typical examples of applications where this product can be used are as a conformal coating for coils, transformers, motors, modules, electrical and electronic components or assemblies, and for buttering motor turns.

- Built-in permanent flexibility

- Good thermal and mechanical shock resistance

- Color : Reddish Brown

- Hardness : 65 Shore D

- Elongation at break : 30 %

- Tensile strength : 91 kg / cm²
