3M SCOTCHCAST ELECTRICAL RESIN 260 - BOX 20 KG
3M Scotchcast Electrical Resin 260 is a widely used, well-known general purpose epoxy powder resin.
A one-part, green pigmented, rapid heat-curing product, it is designed to provide a continuous, tough, moisture and chemical resistant dielectric coating to a variety of substrates.
3M Scotchcast Electrical Resin 260 is manufactured by a fusion blend process, insuring that each individual particle of powder contains all the components necessary to effect a complete cure and attain stated performance properties.
Resin 260 is applied to an object that has been heated to a temperature above the melting point of the resin.
On contact with the preheated application surface, the resin melts, flows to a controlled extent, then cures, bonding to the substrate and coalescing into a smooth, continuous, essentially uniform, thick coating.
It effectively coats flat surfaces and corners, as well as, high points.

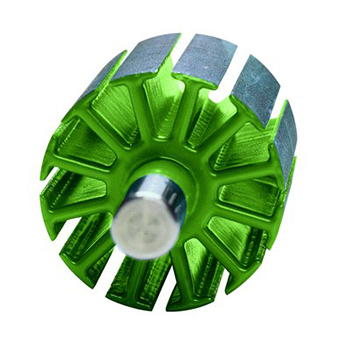

Uses for resin 260 include moisture-proofing and insulating armatures, stators, buss bars and toroid cores.
- Color : Green
- Fast curing
- Excellent electrical properties
- Excellent thermal shock and impact resistance
- Excellent heat, chemical and moisture resistance
- Excellent cut-through resistance
- Excellent flow
- UL 1446 Electrical Insulation System (EIS) approval at class 120(E), 130(B), 155(F), and 180(H)
- Also available as Scotchcast 260CG, a coarse ground version for improved electrostatic spray applications
- Also available as a faster curing version designated Scotchcast 260 8 G
