3M SCOTCHCAST 263 IN 27,20 KG BOX

3M SCOTCHCAST ELECTRICAL RESIN 263 - BOX 27,20 KG

3M Scotchcast Electrical Resin 263 is a widely used, well-known general purpose epoxy powder resin.

A one-part, green pigmented, rapid heat-curing product, it is designed to provide a continuous, tough moisture and chemical resistant dielectric coating to a variety of substrates.

- Fast curing

- Excellent electrical properties

- Excellent thermal shock and impact resistance

- Excellent heat, chemical and moisture resistance

- Good cut-through resistance

- Excellent flow

Scotchcast Electrical resin 263 is manufactured by a fusion blend process, insuring that each individual particle of powder contains all the components necessary to effect a complete cure and attain stated performance properties.

Scotchcast electrical resin 263 is applied to an object that has been heated to a temperature above the melting point of the resin.

On contact with the preheated application surface, the resin melts, flows to a controlled extent, then cures, bonding to the substrate and coalescing into a smooth, continuous, essentially uniform, thick coating.

It effectively coats flat surfaces and corners, as well as, high points.

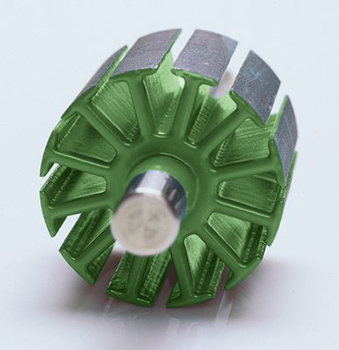

Uses for Scotchcast 263 include moisture proofing and insulating armatures, stators, buss bars and toroid cores.
