3M SCOTCHCAST 5230N IN 27,2 KG BOX

3M SCOTCHCAST ELECTRICAL RESIN 5230N - BOX 27,20 KG

- Specially formulated for use in the electrostatic fluid bed process, but also can be used in conventional fluid beds

- Superior thermal shock and impact resistance

- Excellent heat, chemical and moisture resistance

- Fast cure

- Excellent flow

It is a one-part, blue pigmented, rapid heat-curing coating.

It is designed to provide a continuous, tough moisture and chemical resistant dielectric coating to a variety of metal substrates.

3M Scotchcast Electrical Resin 5230N is manufactured by a fusion blend process insuring that each individual particle of powder contains all the components necessary to effect a complete cure.

3M Scotchcast Electrical Resin 5230N is applied to a room temperature object via the electrostatic fluid bed process.

The negatively charged resin particles are attracted to the grounded object to be coated.

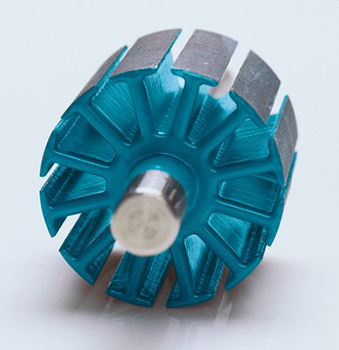

Coating thicknesses up to 25 mils may be obtained. Because of its superior charging capabilities, 3M Scotchcast Electrical Resin 5230N exhibits excellent slot penetration on motor stators and armatures.

Other uses include insulating bus bars and cores.
