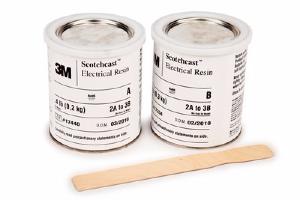

3M SCOTCHCAST 8 IN 450 GR KIT

3M SCOTCHCAST ELECTRICAL RESIN 8 - KIT 450 GR

3M Scotchcast Electrical Resin 8 is a low-stress, highly moisture-resistant compound that cures at room temperature.
This epoxy resin system offers long pot life, low viscosity, a 1:1 mix ratio (by weight), Class B (130°C) temperature rating, and is commonly used to coat printed circuit boards, pot connectors, and impregnate electrical and electronic components.

Because of its low exotherm, resin 8 is also frequently specified for impregnating and encapsulating temperature sensitive units.

- Low exotherm

- High moisture resistance

- Highly resistant to mechanical and thermal shock

- Extended pot life

- Color : Clear
- Hardness : 68 Shore D

- Elongation at break : 75 %

- Compressive strength : 49 kg / cm²

- Tensile strength : 120 kg / cm²
