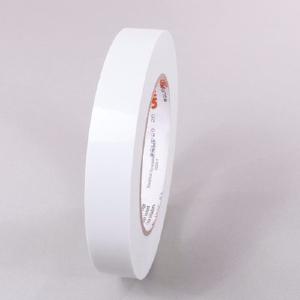

3M SUPER 10 WIDTH 19 MM IN ROLL OF 55 M

3M SUPER 10 - 19 MM x 55 M

3M Epoxy Film Electrical Tape Super 10 is a 5 mil total thickness, high dielectric, flameretardant tape.

This tape has a thermosetting rubber resin pressure-sensitive adhesive that is resistant to heat, oxidation, solvent and oils.

The tape is puncture resistant and has excellent electrical and handling properties.

It is UL 510 flame-retardant, temperature rated to 311°F (155°C).

- Backing : Epoxy film

- Color : Cream

- Thickness : 0,14 mm

- Adhesion to steel : 4,9 N/10mm

- Elongation at break : 100 %

- Thermal class : +155 °C

- Dielectric Breakdown : 8000 V

- UL510 recognition

The tape is suggested for use in wrapping relays, coils, transformers, bobbin-wound sub-fractional horsepower shaded-pole motors and stick-wound coils.

It can also be used for holding in fractional horsepower motors, arbor-wound coils and wire harnesses.

Use as coil cover, anchor, harnessing, banding and as core, layer, and crossover insulation.
