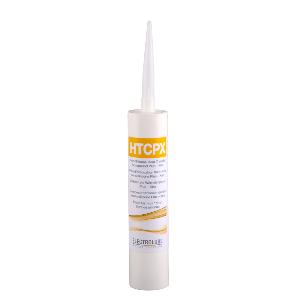

ELECTROLUBE HTCPX700G IN 700GR CARTRIDGE

ELECTROLUBE HTCPX - CARTRIDGE 700 GR

ELECTROLUBE HTCPX provides the ultimate in thermal conductivity together with the advantage of using non-silicone base oil.

The exceptional properties obtained from HTCPX are due to the novel use of various metal oxide (ceramic) powders.

These materials are electrically insulative to ensure that leakage currents can not be formed if the paste should come into contact with other parts of the assembly.

The product contains no silicones and thus cannot migrate onto electrical contacts with consequent high contact resistance, arcing or mechanical wear.

Similarly soldering problems caused by silicones will not been ecountered.

- Excellent non-creep charactistics

- Vibration stable, designed for gap filling applications

- Wide operating temperature range: -50°C to +130°C

- Exceptional thermal conductivity: 3.40 W/m.K

- Low in toxicity

- Low evaporation weight loss

- Color : Pale grey

- Density : 3,10 gr/ml

- Température : -50 °C / +130 °C

- Thermal conductivity : 3,40 W/m.K

- RoHS : Yes
