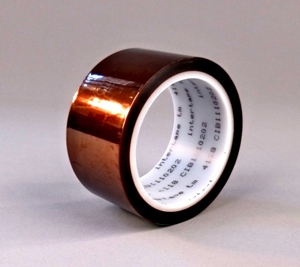

INTERTAPE 4118 WIDTH 50 MM IN ROLL OF 33 M

DuPont Kapton polyimide backing and silicone adhesive offers outstanding thermal resistance and excellent electrical insulating properties.

This tape is used where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.

Operating temperature range is -60°C (-76°F) to +260°C (500°F).

- Backing : Polyimide

- Color : Amber

- Adhesive : Silicone

- Backing thickness : 0,025 mm

- Total thickness : 0,067 mm

- Thermal class : +180 °C

- Dielectric strength : 7000 Volts

- Adhesion to steel : 2,7 N/cm

- Elongation : 60 %

Used on gold fingers for protection in wave soldering.

Is being used as ground barrier and phase insulation in high performance torroidal coils.

Also used as an outer wrap on small bobbin wound coils and on form wound coils for traction motors.
