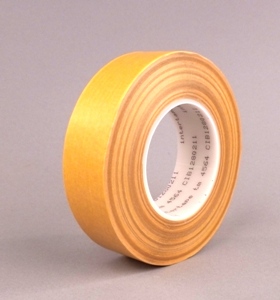

Porous non-woven polyester backing with a zone coated acrylic adhesive.
The tape is free from corrosive substances and withstands impregnating varnishes and lacquers.
The porous area without adhesive allows the impregnating fluids to pass through, avoiding air entrapment.
The impregnated and cured tape provides a high insulating barrier.
Characteristics :
- Backing : Polyester Fleece
- Color : Natural
- Adhesive : Acrylic
- Backing thickness : 0,061 mm
- Total thickness : 0,165 mm
- Thermal class : +130 °C
- Dielectric strength : 500 Volts
- Adhesion to steel : 3,5 N/cm
- Elongation : 35 %
Applications :
Used in coil wrapping, tabbing, anchoring, and for affixing glass fabrics during injection molding.
The breakdown voltage will increase after being impregnated with varnish or lacquer.
The insulation class will increase to that of the impregnation varnishes or lacquers after the part is cured.
