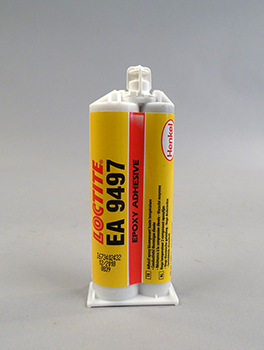

LOCTITE EA 9497 IN 50 ML CARTRIDGE

LOCTITE EA 9497 - CARTRIDGE 50 ML

LOCTITE EA 9497 is a medium viscosity, two component, room temperature curing epoxy adhisive that bonds a wide variety of materials making it suitable as a general purpose adhesive.

LOCTITE EA 9497 is ideal for heat dissipation applications such as bonding metal sheets for high heat transfer and potting electrical components.

It is good for high compression strength applications, as well as high Tg applications with demanding hot strength requirements.

- Chemical Type : Epoxy

- Appearance (Resin) : White liquid

- Appearance (Hardener) : Gray liquid

- Mix ratio by volume (Resin:Hardener) : 2:1

- Mix ratio by weight (Resin:Hardener) : 100:50

- Viscosity : 12 000 mPa.s

- Hardness : 83 Shore D

- Temperature : -55 °C / +180 °C

- Fixture time : 480 minutes

- Tensile strength :  52,6 N/mm²
