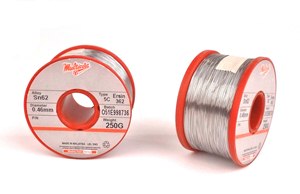

MULTICORE SN62 362 5C - DIAMETER 0,46 MM
The presence of the 2 % silver in Sn62 alloys suppresses absorption of silver from silver-plated surfaces into the solder.
A good joint is thus obtained.
If an ordinary tin/lead alloy is used on silver-plated surfaces, the silver can be lifted from the surface and dissolved into the solder so that a good joint is unlikely.
The attachment of terminations in the manufacture of silver ceramic capacitors is a typical application.
With FLUX 362.
- Melting range : 179 °C
- Composition : 62 % Tin / 36 % Lead / 2 % Silver
- Tensile stregnth : 90 N/mm²
- Conductivity : 11,5 %
