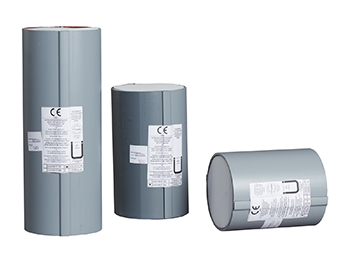

PYRO SAFE CT - LENGTH 150 MM
The PYRO-SAFE CT can be configured in groups and, depending on design, can be fully filled with electrical cables and conductors, optical fibre cables, cable bundles and electrical conduits according to EN 61386-22 made of PE-HD with and without cable filling plus PVC-U conduits, HVAC split line combinations, PE lines Gabocom „speed pipe" (for glass fibre cables and micro cables), bundled or individually, without glass fibre cables up to 100% of the tube opening.
It consists of two plastic half-shells with an intumescent fire protection fabric PYRO-SAFE DG-CR SK holohedrally bonded on the inner side.
The two half-shells are joined fi rmly together with a click lock.
The PYRO-SAFE CT cable tube is available in lengths of 150 mm, 200 mm and 300 mm (longer lengths on request).
- Interior Diameter : 107 MM
- Exterior Diameter : 116,4 MM
