PYRO SAFE CT ML
Fire protection closure below the system floor for cables Ø ≤ 50 mm; cable bundles Ø ≤ 100 mm (single cable Ø ≤ 21 mm) and cable conduits made of PE-HD Ø ≤ 32 mm with and without cables (individual cables Ø ≤ 21 mm).
The PYRO SAFE CT ML can be filled to capacity.

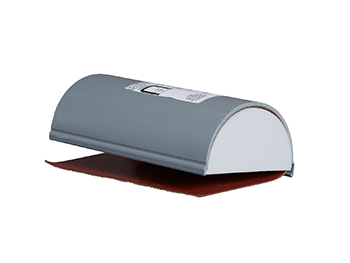

PYRO SAFE CT ML comprises a plastic half-shell with insert made of
PYRO SAFE DG CR SK fire protection fabric, which foams in the event of fire.
On one side the inlay is extended by approx. 120 mm (bottom fl ap).
Residual gap can be closed off using mineral fibre board or mortar.
The closure and seal is only required on one side.
PYRO SAFE DG CR SK is weather resistant and approved for use category X (EOTA TR 024).
Delivery form
- 1 200 mm half shell with inlay and bottom flap made of PYRO-SAFE DG-CR SK fire protection fabric
- 1 melamine resin foam plug
