SES PLIOCATCH DELTA M

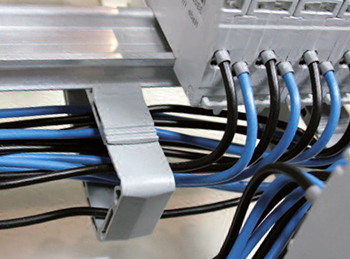

The PLIOCATCH DELTA are recommended for the horizontal passage of cables from the back or front of the modular elements mounted on a double profile DIN or a rail DIN OMEGA.
4 configurations are possible :
- On a double profile DIN: DELTA M front or rear
- On a rail DIN OMEGA: DELTA M front and DELTA L rear on the oblong hole 6.2 x 15 mm
The position of the opening for insertion or withdrawal of cable is directly below the apparatus allowing easy wiring.
Capacity equivalent to a cable trunking of 60x40 mm, but with a smaller footprint to ensure the cables routing even when the space between the rows of equipment is low.
- Material : Polyamide 6.6
- Colour : Grey
- Operating temperatures : -40 to +85°C
- Flame resistance : V2 UL94
