SES PLIOTER T2

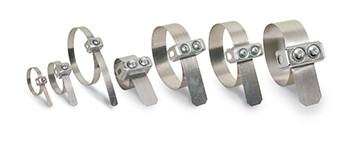

SES-PLIOTER earth strap.
- Strap : Tinned bronze
- Cap and wire-strainer : Electrogalvanized steel
- Specification : Conform to norm NF C15-100
Features :
- Length : 190 MM
- Width : 25 MM
- Thickness : 0,25 MM
- Cable Section : 10 - 16 MM²
- Tube Diameter : 16 - 48 MM
- System of double clamping for tubes and cables simultaneously.
- Contact is established by THC flattening of the conductor between 2 layers of strapping.
- Perfect crimping.
- Wide range of conductors per type of earth strap.
