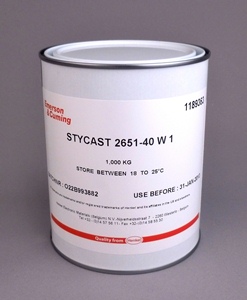

LOCTITE STYCAST 2651-40 W1 epoxy encapsulant is designed for general purpose applications and has excellent adhesion to a wide variety of substrates.
When fully cured, the material is readily machined with carbide tools.
General Features :
- Technology : Epoxy
- Colour : Black
Features with Catalyst 9 :
- Hardness : 90 Shore D
- Temperature : -40 °C / +130 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 9
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 13,5
- Thermal conductivity : 0,48 W/m.K
- General purpose
- Good chemical resistance
- Good physical strength
Features with Catalyst 24 LV :
- Hardness : 88 Shore D
- Temperature : -65 °C / +105 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 18
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 27
- Thermal conductivity : 0,46 W/m.K
- Low color
- Low viscosity
- Excellent thermal shock and impact resistance
- Excellent adhesion to Glass
Features with Catalyst 27-1 :
- Hardness : 94 Shore D
- Temperature : -40 °C / +175 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 15
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 22
- Thermal conductivity : 0,50 W/m.K
- Long pot life
- Excellent chemical resistance
- Good physical and chemical properties at elevated temperatures
