General Features :
- Technology : Epoxy
- Colour : Black

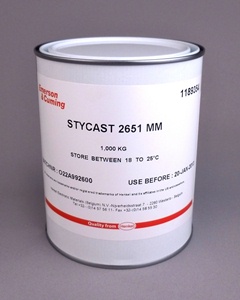

LOCTITE STYCAST 2651MM CAT 9 is a general purpose encapsulant designed for machine dispensing and for parts requiring post molding machining.
Features with Catalyst 9 :
- Hardness : 88 Shore D
- Temperature : -40 °C / +130 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 7
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 12
- Thermal conductivity : 0,60 W/m.K
- Tensile strength : 45 N/mm²
- Compressive strength : 148 N/mm²
LOCTITE STYCAST 2651MM CAT 11 is a general purpose encapsulant designed for machine dispensing and for parts requiring post molding machining.
Features with Catalyst 11 :
- Hardness : 89 Shore D
- Temperature : -55 °C / +155 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 8,5
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 13
- Thermal conductivity : 0,60 W/m.K
- Tensile strength : 48 N/mm²
- Compressive strength : 104 N/mm²
LOCTITE STYCAST 2651MM CAT 23LV is a general purpose encapsulant designed for machine dispensing and for parts requiring post molding machining.
Features with Catalyst 23 LV :
- Hardness : 86 Shore D
- Temperature : -55 °C / +155 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 15
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 24,5
- Thermal conductivity : 0,60 W/m.K
- Tensile strength : 55 N/mm²
- Compressive strength : 83 N/mm²
