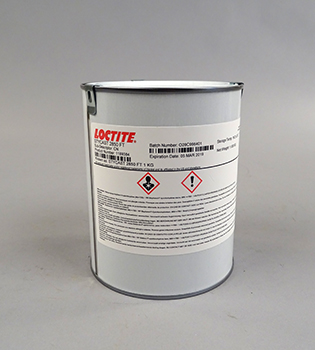

LOCTITE STYCAST 2850 FT - CAN 1 KG
LOCTITE STYCAST 2850 FT is recommended for encapsulation of components that require heat dissipation and thermal shock properties.
General Features :
- Technology : Epoxy
- Colour : Black
Features with Catalyst 9 :
- Hardness : 96 Shore D
- Temperature : -40 °C / +130 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 3,5
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 8,5
- Thermal conductivity : 1,25 W/m.K
Features with Catalyst 11 :
- Hardness : 96 Shore D
- Temperature : -55 °C / +155 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 4,5
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 9,5
- Thermal conductivity : 1,28 W/m.K
Features with Catalyst 23 LV :
- Hardness : 92 Shore D
- Temperature : -65 °C / +105 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 7,5
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 17,5
- Thermal conductivity : 1,10 W/m.K
Features with Catalyst 24 LV :
- Hardness : 92 Shore D
- Temperature : -65 °C / +105 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 8
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 17,5
- Thermal conductivity : 1,01 W/m.K
