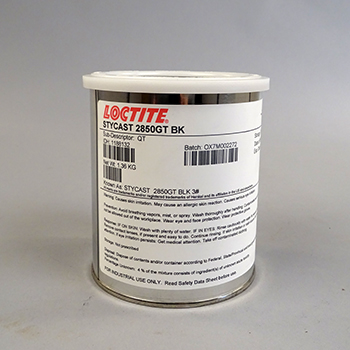

LOCTITE STYCAST 2850 GT - CAN 1 KG
STYCAST 2850 GT is a two component, thermally conductive epoxy encapsulant that can be used with a variety of catalysts.
It features a low coefficient of thermal expansion and excellent electrical insulative properties.
The fillers in STYCAST 2850 GT are slightly gritty and very hard, finished part must be ground.
STYCAST 2850 GT is designed for encapsulation of components which need heat dissipation and thermal shock properties.
General Features :
- Technology : Epoxy
- Colour : Black
Features with Catalyst 9 :
- Hardness : 96 Shore D
- Temperature : -40 °C / +130 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 3,5
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 8
- Thermal conductivity : 1,36 W/m.K
- Compressive strength : 164 N/mm²
Features with Catalyst 11 :
- Hardness : 96 Shore D
- Temperature : -55 °C / +155 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 4
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 9
- Thermal conductivity : 1,31 W/m.K
- Compressive strength : 187 N/mm²
Features with Catalyst 24 LV :
- Hardness : 94 Shore D
- Temperature : -65 °C / +105 °C
- Mix ratio by weight ( Resin / Catalyst ) : 100 / 7
- Mix ratio by volume ( Resin / Catalyst ) : 100 / 16,5
- Thermal conductivity : 1,12 W/m.K
- Compressive strength : 110 N/mm²
