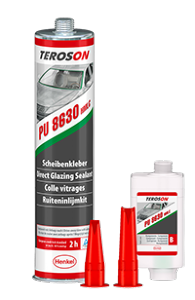

TEROSON PU 8630 HLMC SET
Teroson PU 8630 HMLC SET is a bi-component polyurethane adhesive with high shear modulus and low conductivity.
Characteristics
The direct glazing adhesive is outstanding for the following properties:
- Very good sag resistance
- High elastic and shear strength, even after aging
- Very low conductivity
- Good adhesion to the remaining material
- Excellent adhesion to glass, glass with the ceramic coating, encapsulation and to painted surfaces, in connection with primer/activator
- High UV resistance in connection with primer/activator
- High shear modulus
- Easy to use ( application with battery gun / 1C pneumatic gun)
Application
Teroson PU 8630 HMLC is used for the bonding of front, rear and side screens to the body of motor-, utility-, special- and rail vehicles.
Technical characteristics
- Colour : black
- Odour : weak
- Consistency : smooth, sag-resistant, pasty
- Density : approx. 1.2 g/cm3
- Solids : 100%
- Shore-A-hardness (DIN 53505): approx. 60
- Tensile strength (DIN 53504): approx. 9.5 MPa
- Stress (DIN 53504): approx. 5.7 MPa at 100 % elongation
- Shear modulus (DIN 54451): approx. 3.0 MPa
- Elongation to break (DIN 53504): approx. 370 %
- Shear strength (thickness 5mm, 5–6 MPa (fully cured) based on DIN EN 1465) :
approx. 4 to 5 MPa (fully cured)
- Specific forward resistance (ASTM D 257-99 / DIN IEC 60093) : approx. 1×1010 ω cm
- Volume change (DIN 52451) : < 1 %
- Glazing time* : max. 25 mins
- Material application temperature : +60°C to +70°C
- In service temperature range : -40°C to +90°C
short exposure (up to 1 hr.) : +120°C
* period of time between beginning of material application until inserting of the pane
|
